SPECIFICATIONS

Brand Name: Wuzhi Audio

Certification: CE

Channels: 1

Control Method: Push button

High-concerned chemical: none

Material: aluminum,Metal

Maximum Power Per Channel: 100 W

Model Number: ZK1001U

Number of channels: 1

Origin: Mainland China

Output Power: 100W

Package: Yes

Parts: Adapter

Surround sound channel configuration: Others

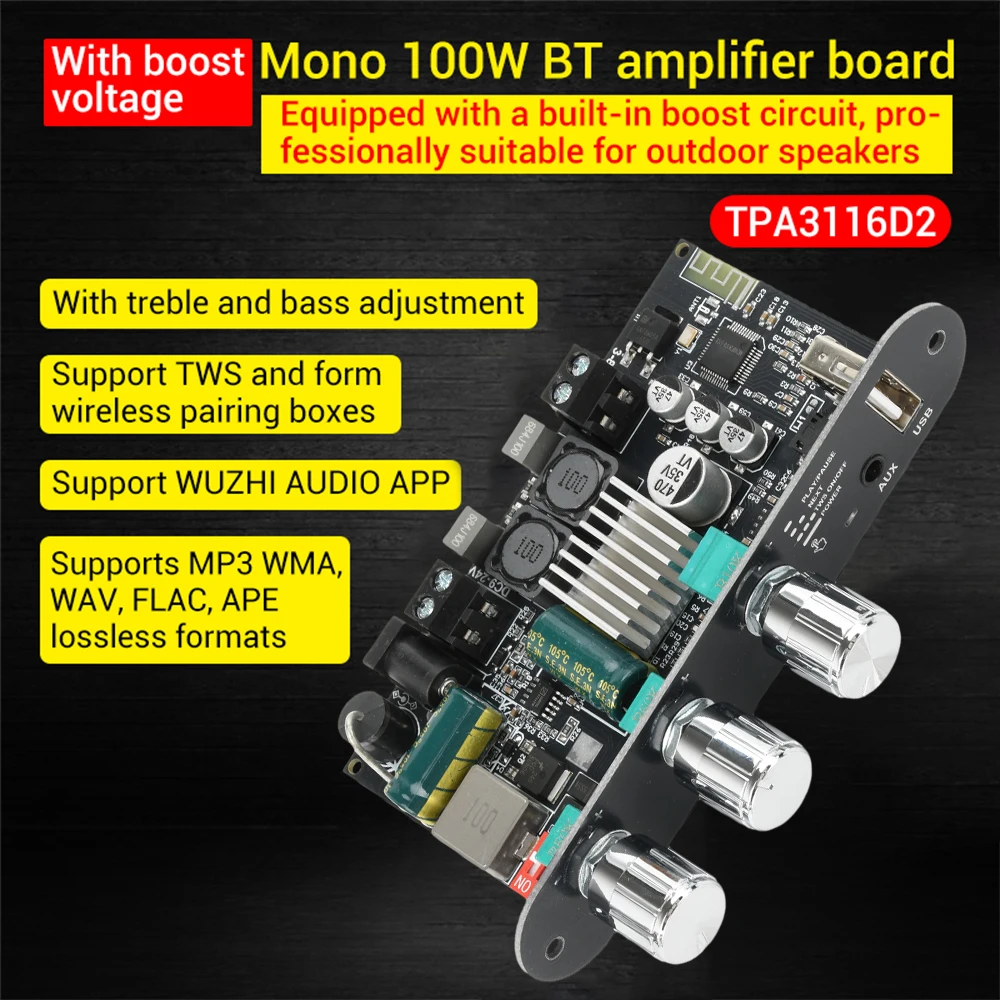

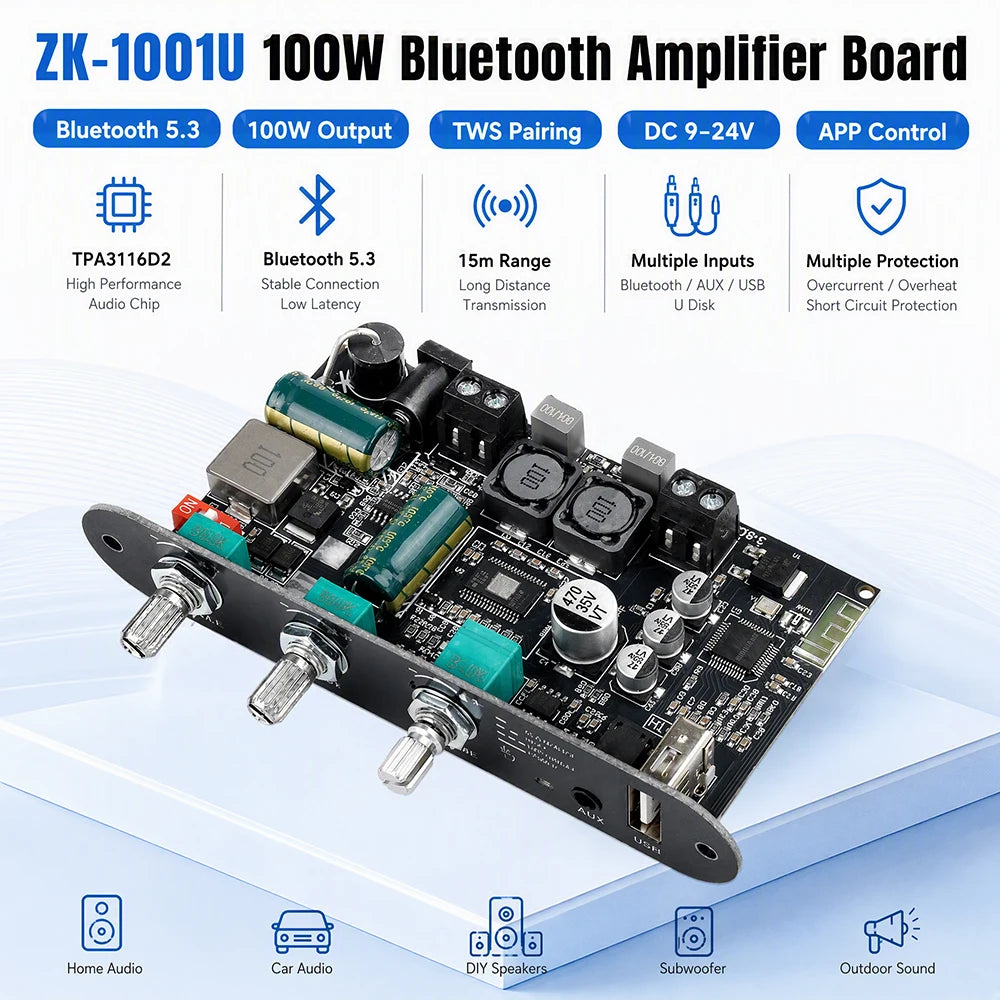

ZK‑1001U Mono 100W Bluetooth Amplifier Board TPA3116D2 DC9‑24V TWS Stereo Pairing Support Wuzhi Audio APP AUX U Disk USB Sound Card Amp Module

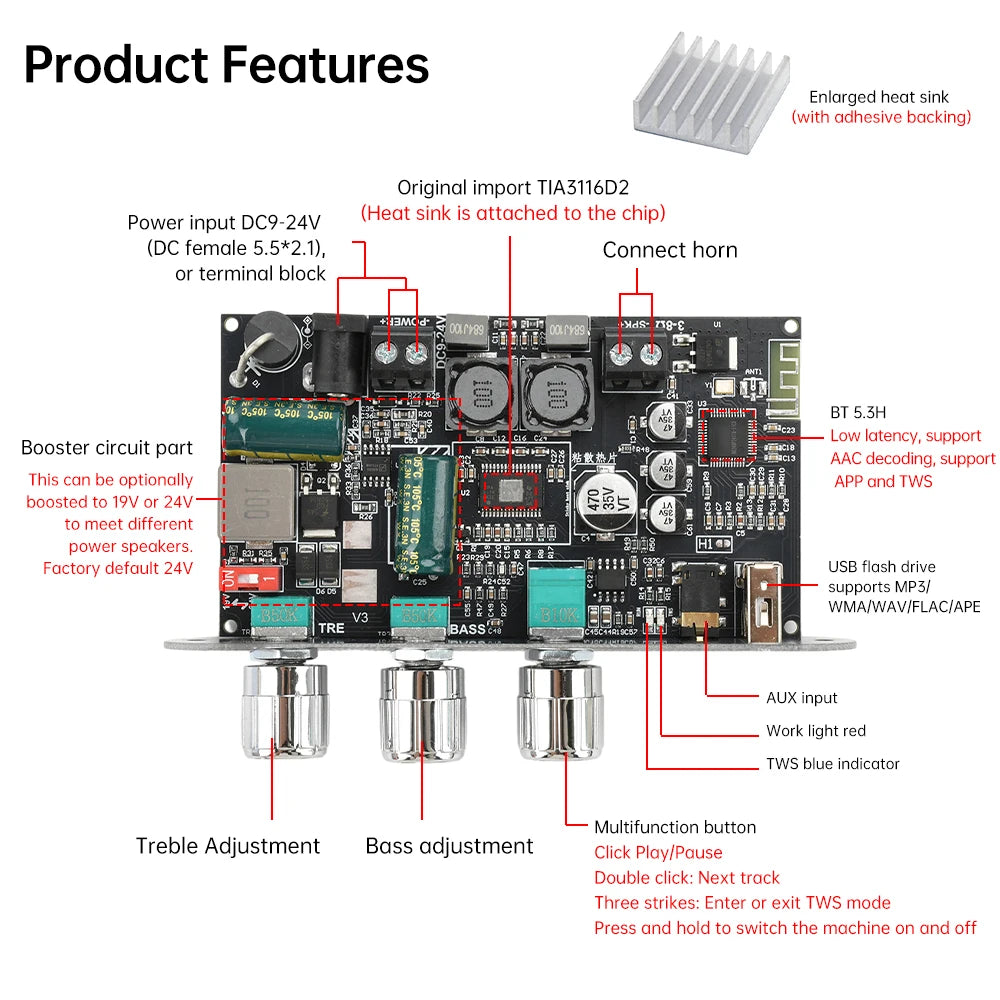

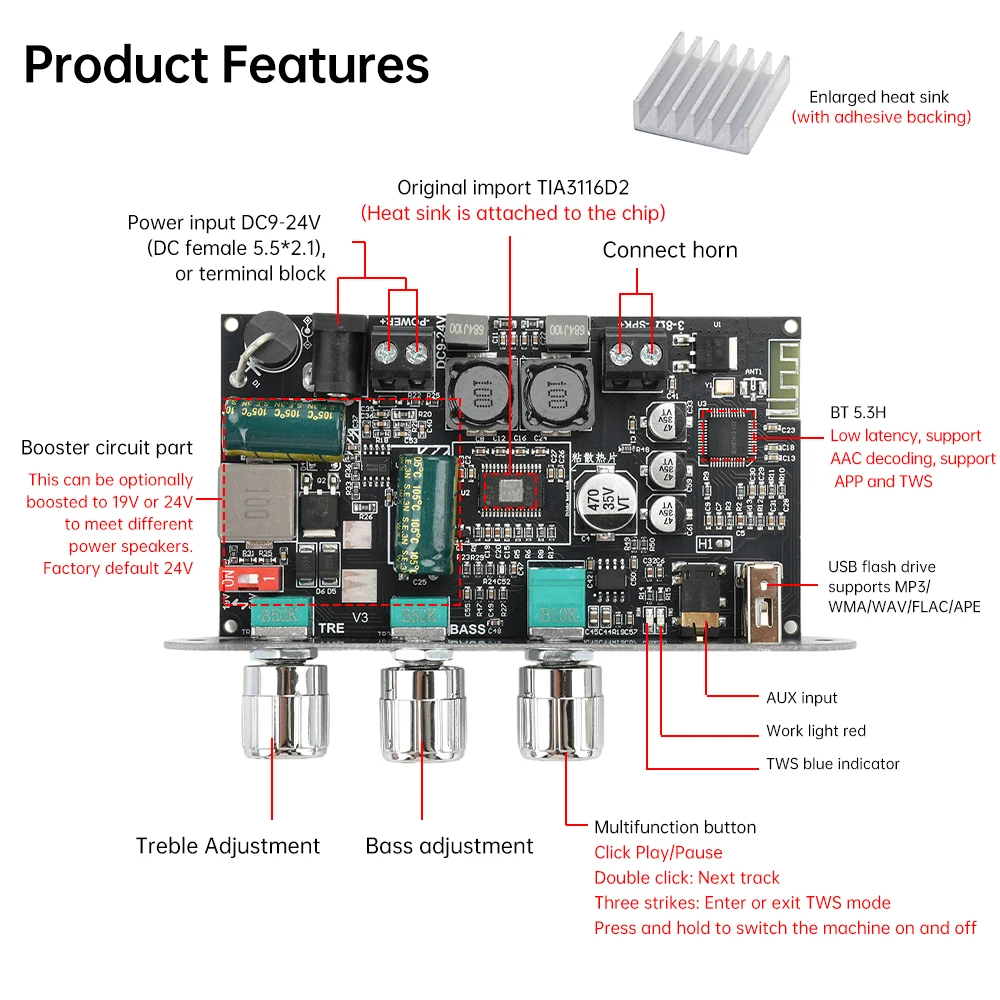

Product Features:

1. Efficient connection: With a transmission distance of up to 15 meters, it supports multiple input methods such as Bluetooth, AUX, USB flash drive, and USB sound card.

2. Built in boost circuit: compatible with DC9-24V power supply, especially suitable for outdoor and mobile speakers powered by batteries.

3. Multi functional button control: One click to play/pause, switch tracks, power on/off, and enter TWS mode, easy to operate.

4. Powerful box function: Two sets of equipment can be combined to create left and right channel stereo sound, with strong spatial positioning and suitable for DIY production.

5. Intelligent protection mechanism: equipped with anti reverse, over temperature, over current, short circuit, and anti-static protection to ensure safe and stable use.

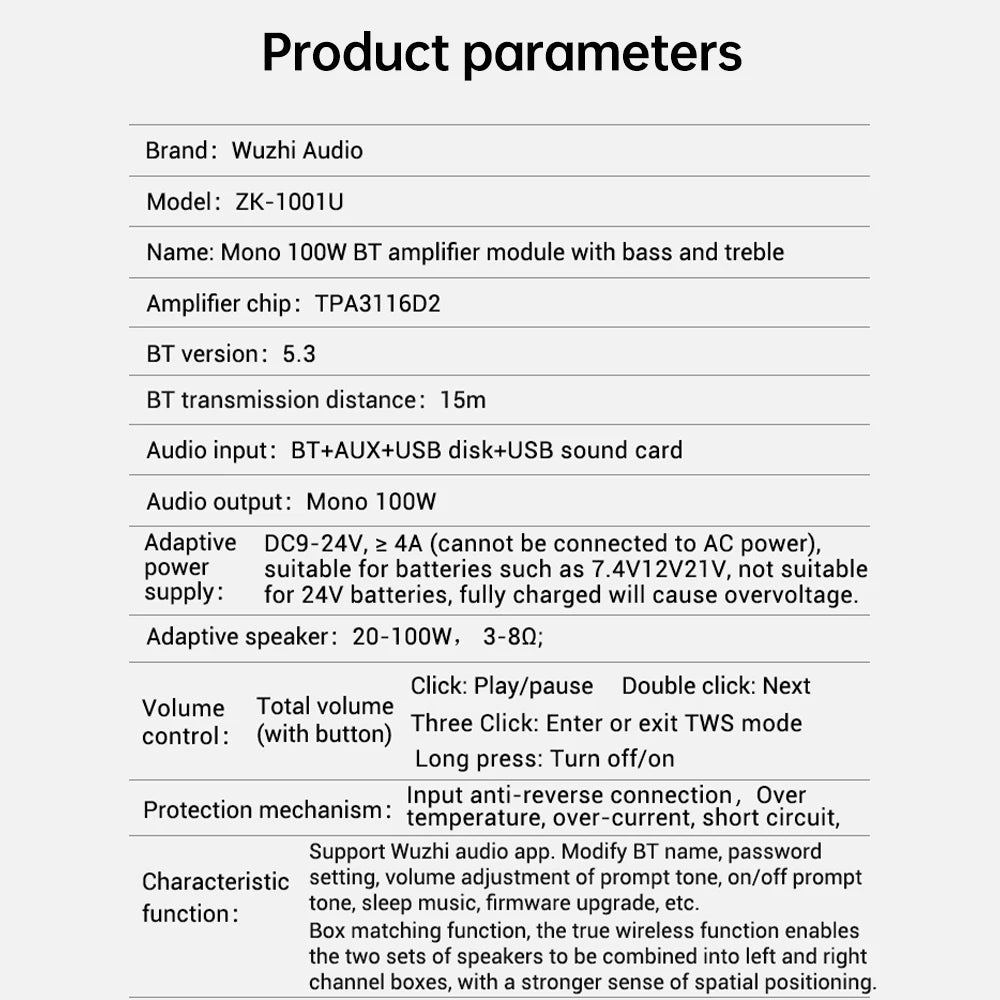

Product Parameters:

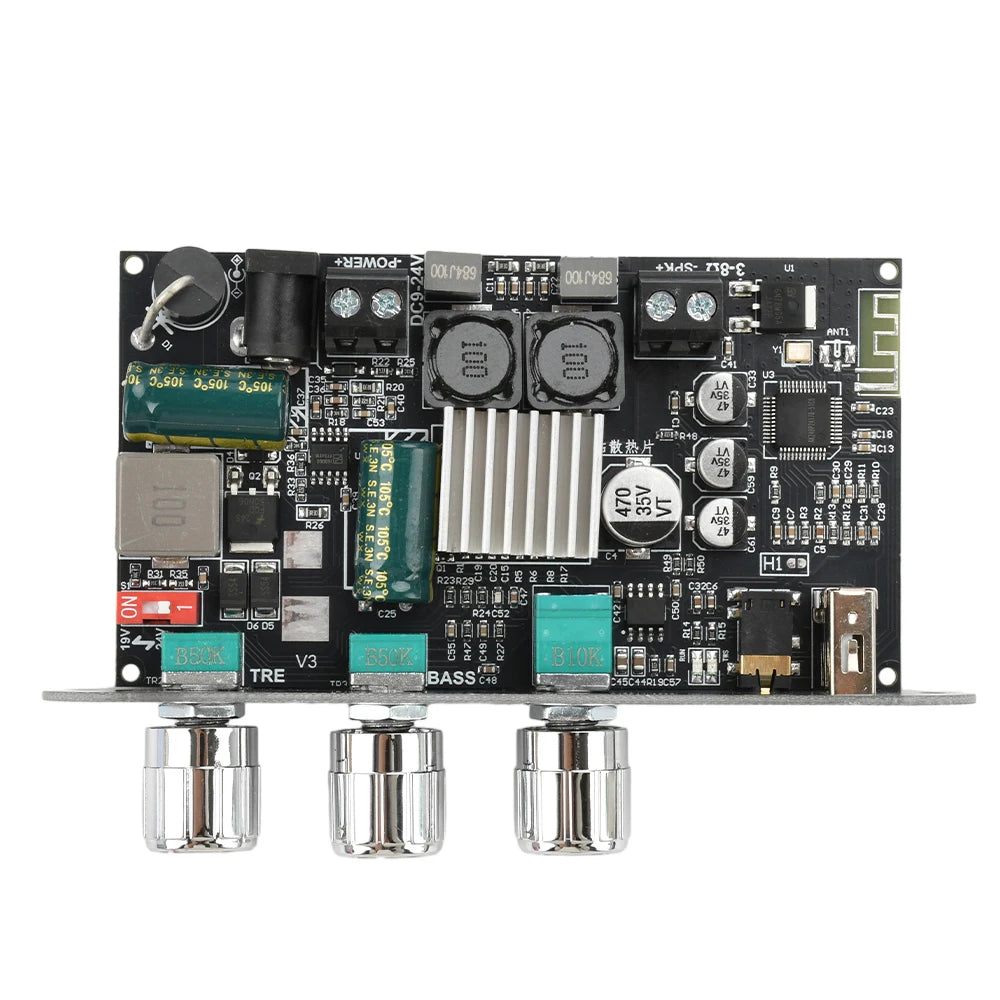

Product model: 1001U

Product Name: Single channel 100W Bluetooth amplifier module with boost and high/low frequency adjustment

Amplifier chip: TPA3116D2

Bluetooth version: 5.3

Bluetooth transmission distance: 15 meters

Audio input: Bluetooth+AUX+USB flash drive+USB sound card

Audio output: Mono 100W

Suitable power supply: DC9-24V, ≥ 4A (cannot be connected to AC power), suitable for 7.4V12V21V and other batteries, not suitable for 24V batteries, fully charged will cause overvoltage.

Compatible speaker: 20-100W, 3-8 Ω

Volume adjustment: Total volume with buttons

Click: Play/Pause Double Click: Next Three Click: Enter or Exit T W S Mode Long Press: Power Off/On

Protection mechanism: Input anti reverse, over temperature, over current, short circuit, anti-static protection

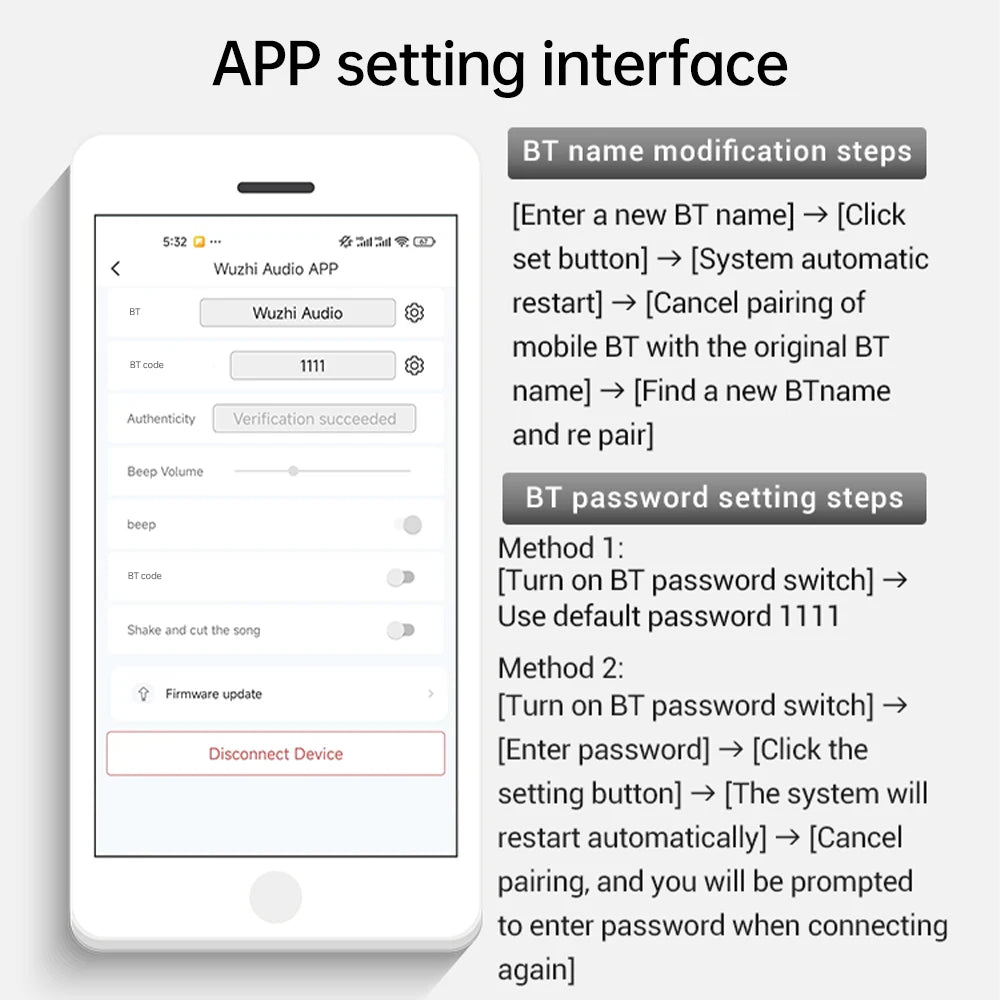

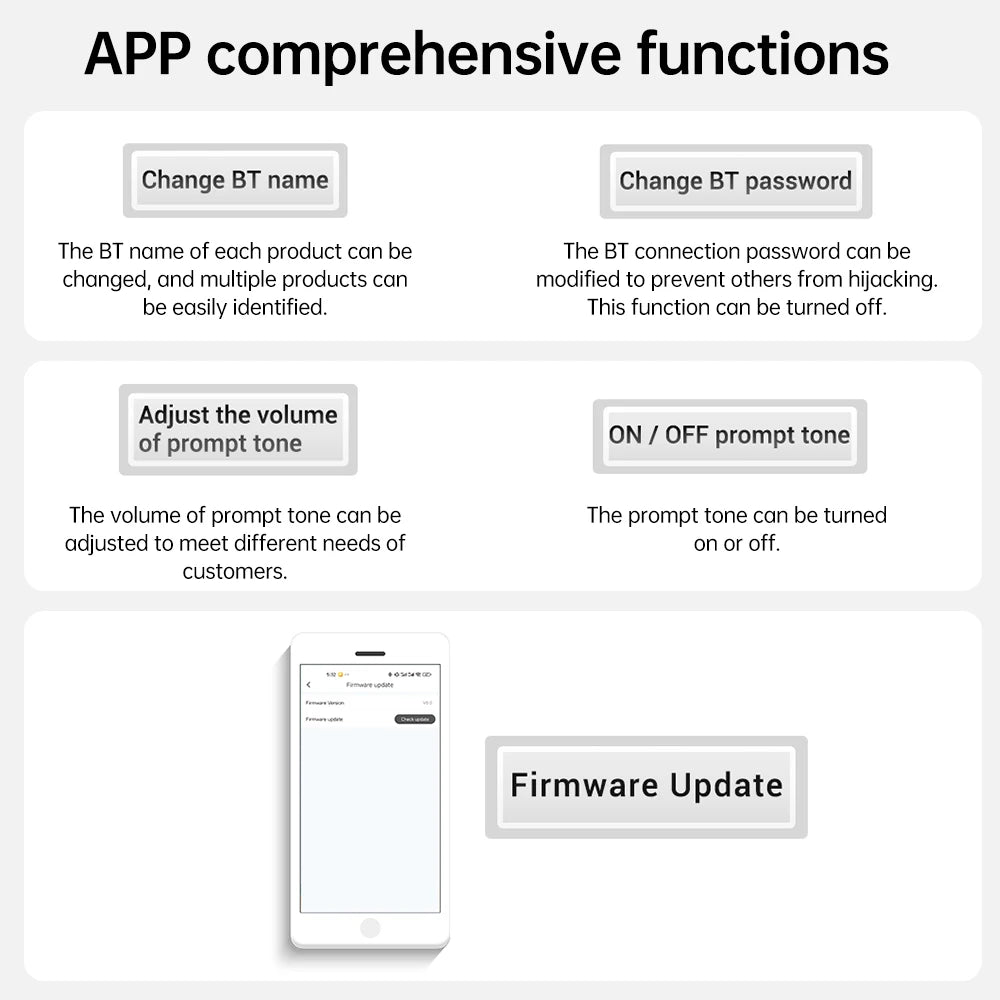

Featured feature: Supports Wuzhi Audio APP. Modify Bluetooth name, password settings, adjust the volume of prompt sound, turn on/off prompt sound, sleep aid music, firmware upgrade, and more. The box function and true wireless function allow two sets of speakers to be combined into a left and right channel box, providing a stronger sense of spatial positioning.

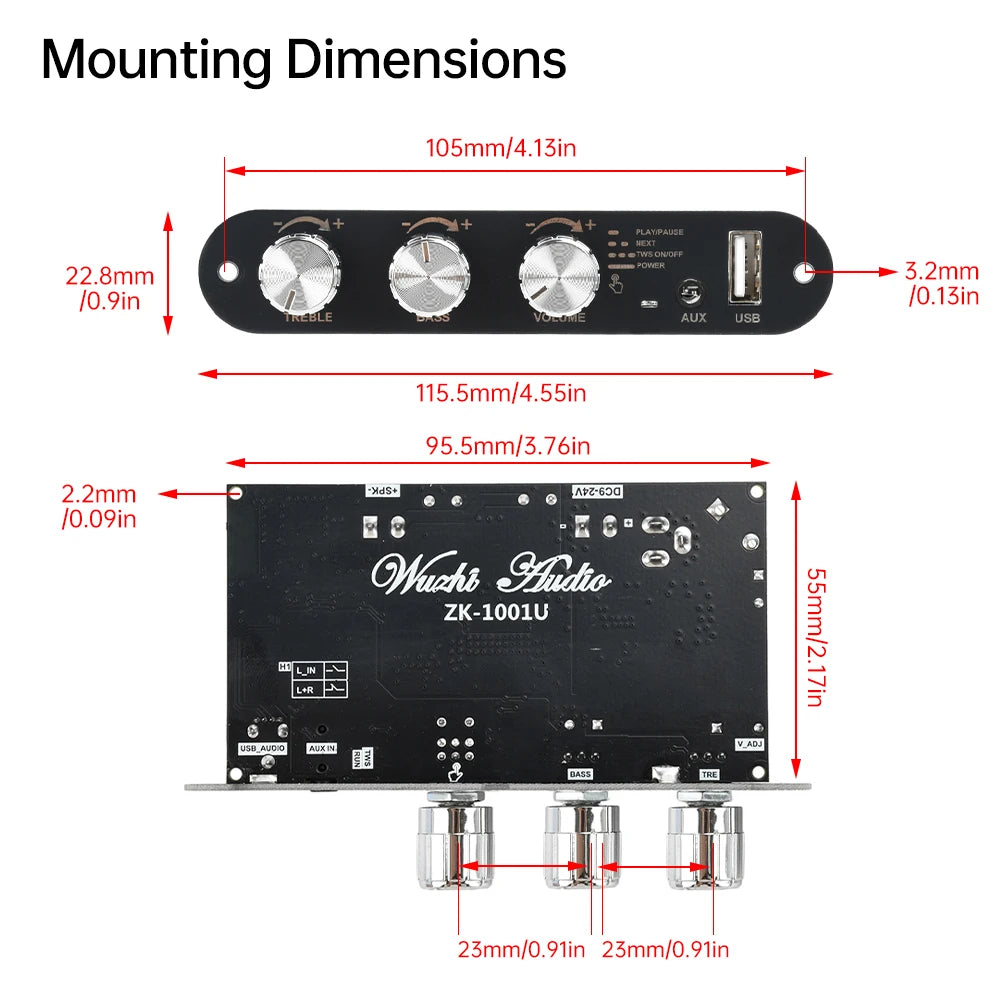

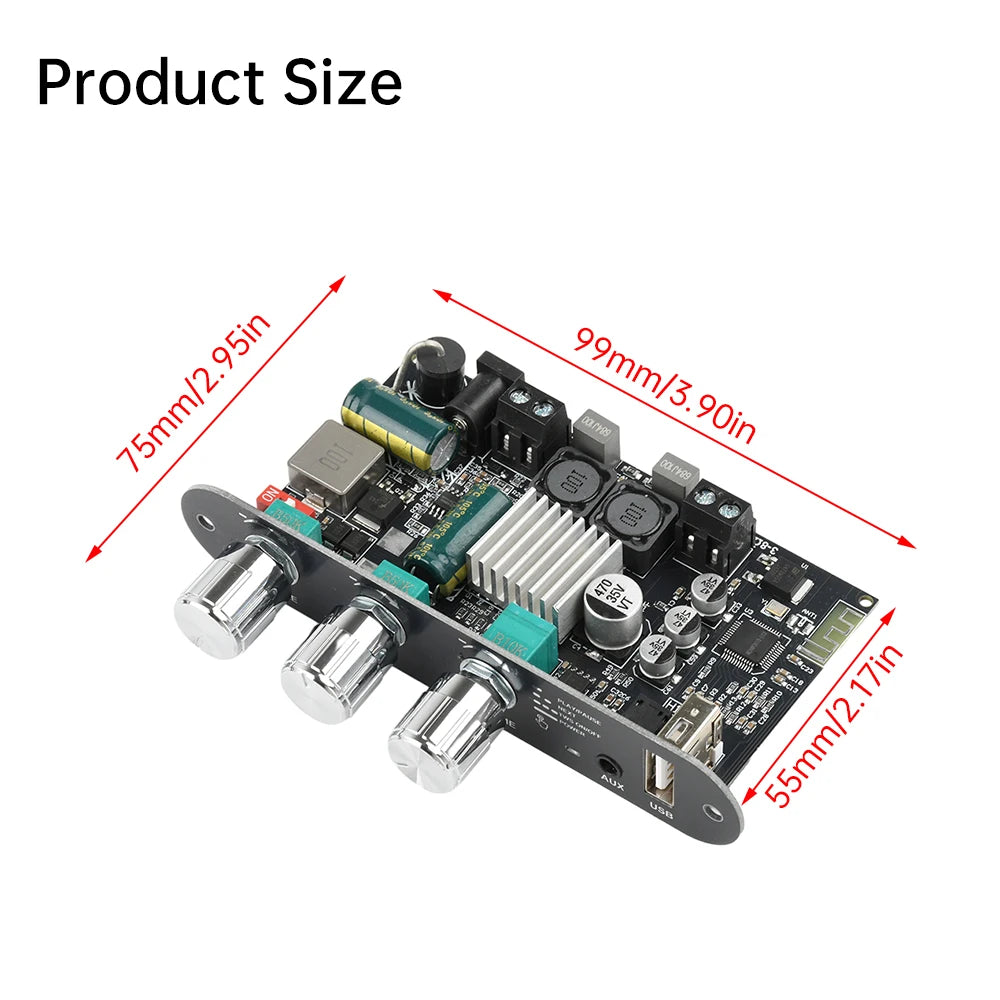

Product size: 99x75x22.8mm

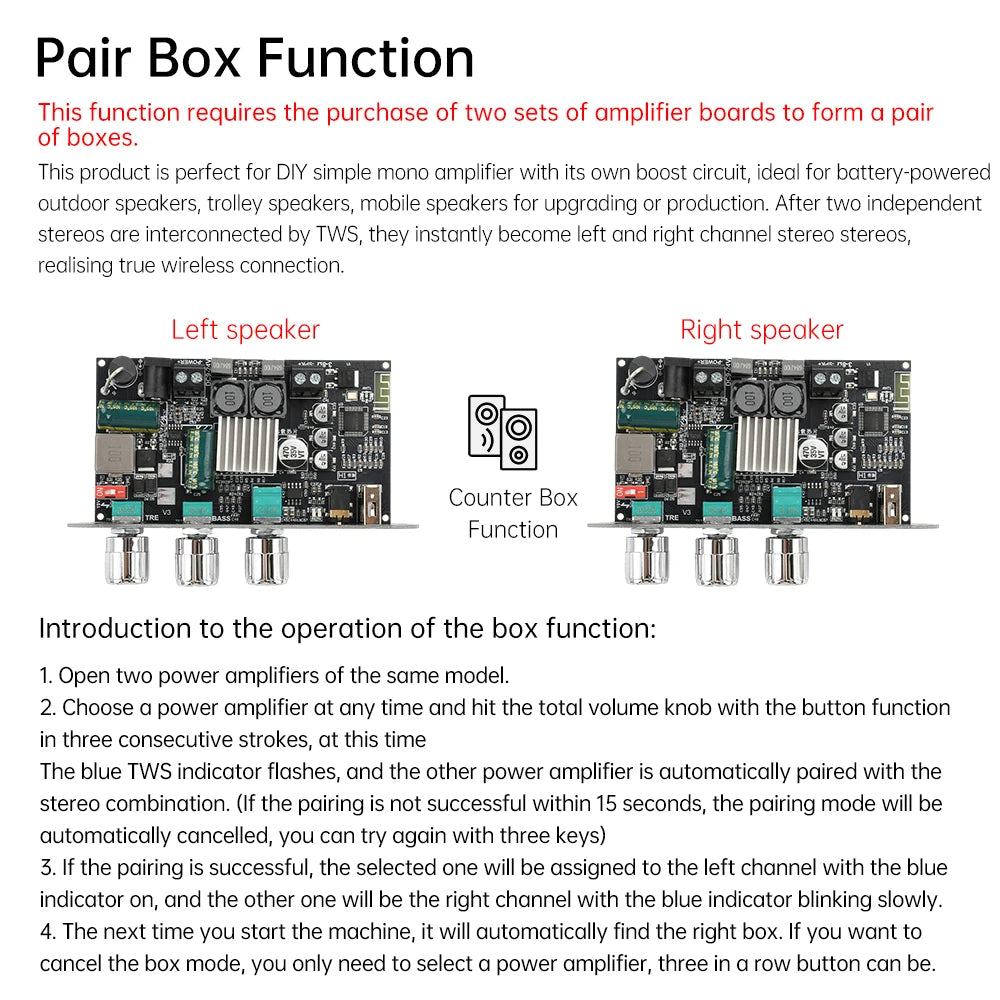

Box function: This function requires the purchase of two sets of amplifier boards to form a box. This product is very suitable for DIY simple mono amplifiers, with built-in boost circuits, and is very suitable for battery powered outdoor speakers, telescopic speakers, and mobile speakers for upgrading, modification, or production.

After TWS interconnection, two independent speakers instantly become left and right channel stereo speakers, achieving true wireless connection.

Product List:

1X amplifier board (heat sink and knob cap need to be installed by oneself)
